Portable Test Equipment

Portable Test Equipment is typically used in marine, industrial, or electrical engineering maintenance and commissioning work. Let’s quickly identify the general types of devices visible here:

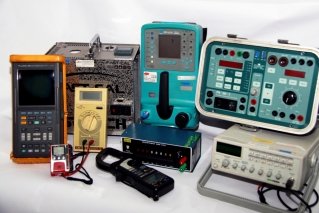

📋 What’s in this Image:

1. Portable Oscilloscope (left, orange casing)

   • For visualizing electrical signal waveforms.

   • Useful in troubleshooting control systems, electronics, and automation signals.

2. Digital Multimeters (center, yellow and red units)

   • Measure voltage, current, resistance, continuity, and sometimes capacitance or frequency.

3. Insulation Resistance Tester / Megger (turquoise, middle-top)

   • Used to measure insulation resistance in cables, motors, and transformers — a critical tool in electrical safety testing.

4. Vibration Analyzer (black handheld device in front)

   • For monitoring the condition of rotating machinery like pumps, engines, and compressors via vibration readings.

5. Portable Data Logger / Signal Calibrator (small black unit)

   • Used for calibrating or simulating signal inputs like 4-20 mA, 0-10 V, or thermocouple readings.

6. Oil Content Monitor Calibration Unit (silver box with handle)

   • Likely a test rig or calibrator for shipboard OMD/OCM units.

7. Portable Power Quality Analyzer (right, gray box with screen and rotary knobs)

   • Monitors and analyzes voltage, current, frequency, harmonics, and power factors in AC systems.

📌 Applications:

• Marine engine room maintenance.

• Power plant equipment checks.

• Industrial automation and control system troubleshooting.

• Shipboard electrical surveys.

• Safety and regulatory compliance testing (IMO, SOLAS).
