VAF Instruments ODME MK6
VAF Instruments ODME MK6 (Oil Discharge Monitoring Equipment) setup.
📌 What is it?
The ODME (Oil Discharge Monitoring Equipment) is a mandatory system on tankers, required by MARPOL Annex I to monitor and record discharges of oily water into the sea, ensuring they stay within legal limits.

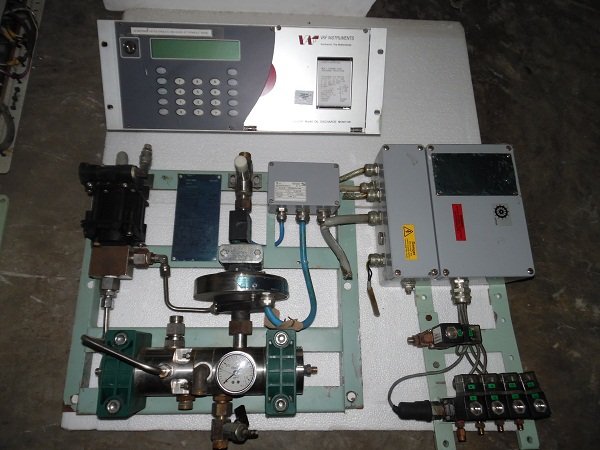

📊 Key Components Visible:
-
VAF Instruments Control Unit (top left)
-
Contains a keypad, display, and control electronics for managing system functions, setting parameters, and logging data.
-
-
Measuring Cell & Sensors (middle section)
-
The heart of the ODME system, where a sample of the ballast or tank wash water is analyzed for oil content.
-
Connected to various sensors for pressure, flow, and sample control.
-
-
Pump Unit (left side)
-
Draws a sample from the discharge line for continuous monitoring.
-
-
Pressure Gauge (bottom middle)
-
Monitors sample line pressure, ensuring proper flow through the measuring cell.
-
-
Solenoid Valves (bottom right)
-
Manage the direction of the sample flow (e.g., to overboard or slop tank).
-
-
Flow & Pressure Transmitters (center-right)
-
Provide feedback to the control unit for monitoring and alarm functions.
-
-
Data Logger/Printer (optional, not clearly visible here but typical in the full setup)
-
Records discharge events with date, time, oil concentration, and ship’s position.
-
📦 Manufacturer:
VAF Instruments — a Dutch manufacturer known for marine flow measurement, oil monitoring, and emission control systems.
📌 Typical Applications:
-
Monitoring and controlling oil content in ballast and tank cleaning water discharges.
-
Logging and reporting discharge events for environmental compliance.
-
Automatic overboard discharge stopping if oil content exceeds legal limits.
📌 How It Works:
-
Water sample drawn by the pump.
-
Passes through the measuring cell.
-
Oil content measured using optical detection principles.
-
Data displayed and logged in the control unit.
-
If ppm exceeds the set threshold, system triggers alarms and stops discharge automatically.
